Granulate dispenser

The idea

The possibilities for dosing granulate on the market are limited. Usually it is taken from larger doses with the help of a spoon. A more precise dosage is by means of pre-packed sachets. Although these are easy to carry in your pocket, they are again unsuitable for individual dosing and cause unnecessary waste. Moreover, older users in particular find it difficult to tear open the small sachets.

We at PACKSYS have therefore looked for a way to compensate for these disadvantages: a dosing cap suitable for glass and plastic containers of various volumes, which offers a clean, hygienic and above all simple solution. We then started to develop our granulate dispenser.



Structure and operation

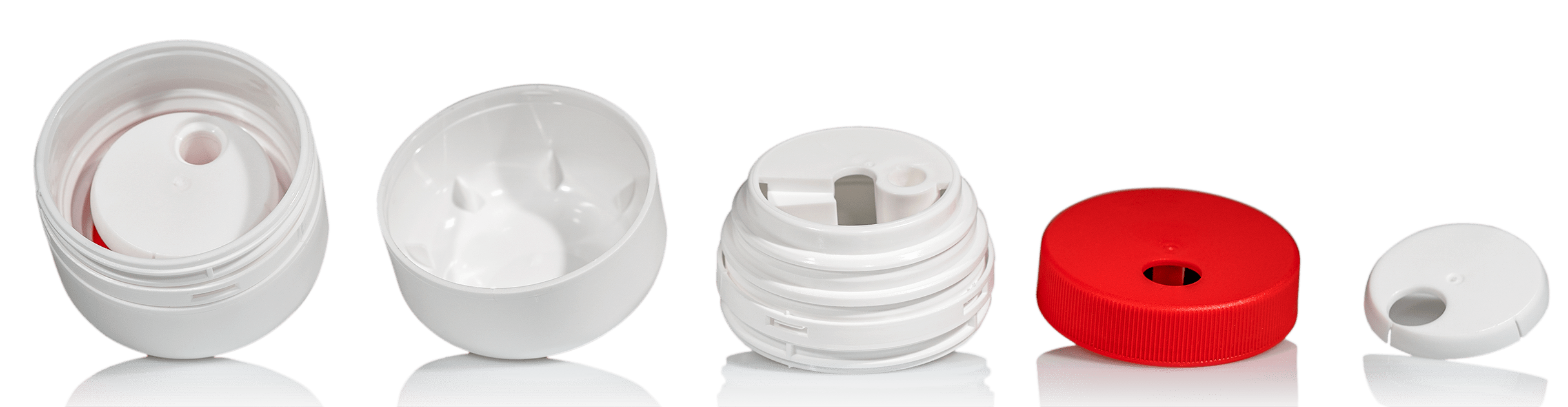

The granulate dispenser consists of a dosing attachment which is firmly pressed onto the container and a dosing cap with tamper-evident seal. The attachment essentially consists of a catch and two discs with a hole, which can be moved against each other with a simple rotary movement. This opens either the hole through which granulate from the container enters the dosing chamber or the dispensing hole on the outer actuating disc (red outer disc) through which the precisely dosed amount of granulate can be removed.

Application

The application is done overhead, the protective cap can be used as a dosing bowl. By turning it several times, the desired amount of granulate can be dosed individually without under- or overdosing. The standard dosing volume of our samples is 0.5 ccm per rotation, but volumes of up to 1 ccm per rotation can be realised on request. The integrated cup holds 10 ccm, which corresponds to 10 individual doses.

The application is done overhead, the protective cap can be used as a dosing bowl. By turning it several times, the desired amount of granulate can be dosed individually without under- or overdosing. The standard dosing volume of our samples is 0.5 ccm per rotation, but volumes of up to 1 ccm per rotation can be realised on request. The integrated cup holds 10 ccm, which corresponds to 10 individual doses.

Advantages compared to conventional packaging

The big advantage of dosing with the help of our granulate closure is that you no longer need any other aids to measure the quantities. No spoons, no measuring cups, no other vessels. Only the defined volume unit is taken per rotation. You can either put the granulate directly into a container (water glass, pot, aquarium) or you can put it into the lid and take it through the lid.

The fact that you no longer need a dosing aid for withdrawal is not only practical to use, but also protects the contents from contamination. The system is self-contained, oxygen and moisture are excluded. The dosing attachment seals perfectly.

The application is intuitive, requires no effort and no steady hand (as with a spoon). This in combination with the simple, high dosing accuracy makes the granule dispenser an ideal dosing aid for pensioners and patients with motor impairments. The dosage cap is easy to use and is also a suitable dosage option for children.

Application areas and examples

COSMETICS & WELLNESS

PHARMACY

FOOD & FOOD SUPPLEMENT

PET FOOD & MEDICINE FOR SMALL ANIMALS

Cosmetics / Wellness

Bath additives, body and face peelings

Pharmacy / veterinary medicine

Drugs for dissolving, drugs for direct administration, drugs requiring high dosage accuracy, drugs for children and the elderly, veterinary drugs

Food / food supplement

Spices and seeds, sports food, vitamin preparations, laxatives, appetite suppressants, pet food

Technology / Chemistry

Detergents and dishwasher powders, samples and substances for chemical tests

The PACKSYS granulate dispenser can be used in many areas. In the wellness and cosmetics sector, for example, it can be used for dosing bath additives or body and facial peelings. In the pharmaceutical sector, it facilitates the exact withdrawal of a defined quantity of medication, even for small animals. The food industry benefits in the area of food supplements or even spices and animal feed. As an application in the technical field, for example, the dosing of washing powder or dishwasher powder would be conceivable. In chemical laboratories, granular substances can be dispensed cleanly for samples and experiments.

COSMETICS & WELLNESS

PHARMACY

FOOD & FOOD SUPPLEMENT

PET FOOD & MEDICINE FOR SMALL ANIMALS

Cosmetics / Wellness

Bath additives, body and face peelings

Pharmacy / veterinary medicine

Drugs for dissolving, drugs for direct administration, drugs requiring high dosage accuracy, drugs for children and the elderly, veterinary drugs

Food / food supplement

Spices and seeds, sports food, vitamin preparations, laxatives, appetite suppressants, pet food

Technology / Chemistry

Detergents and dishwasher powders, samples and substances for chemical tests

The PACKSYS granulate dispenser can be used in many areas. In the wellness and cosmetics sector, for example, it can be used for dosing bath additives or body and facial peelings. In the pharmaceutical sector, it facilitates the exact withdrawal of a defined quantity of medication, even for small animals. The food industry benefits in the area of food supplements or even spices and animal feed. As an application in the technical field, for example, the dosing of washing powder or dishwasher powder would be conceivable. In chemical laboratories, granular substances can be dispensed cleanly for samples and experiments.

Cosmetics / Wellness

Bath additives, body and face peelings

Pharmacy / veterinary medicine

Drugs for dissolving, drugs for direct administration, drugs requiring high dosage accuracy, drugs for children and the elderly, veterinary drugs

Food / food supplement

Spices and seeds, sports food, vitamin preparations, laxatives, appetite suppressants, pet food

Technology / Chemistry

Detergents and dishwasher powders, samples and substances for chemical tests

The PACKSYS granulate dispenser can be used in many areas. In the wellness and cosmetics sector, for example, it can be used for dosing bath additives or body and facial peelings. In the pharmaceutical sector, it facilitates the exact withdrawal of a defined quantity of medication, even for small animals. The food industry benefits in the area of food supplements or even spices and animal feed. As an application in the technical field, for example, the dosing of washing powder or dishwasher powder would be conceivable. In chemical laboratories, granular substances can be dispensed cleanly for samples and experiments.

Advantages for suppliers and customers

  • Pharmaceutically approved materials
  • Good barrier properties
  • Easy processing on standard filling lines
  • Tamper evidence
  • Selection of glass and plastic containers
  • Clean room production
  • CE certification
  • High dosing accuracy
  • Also suitable for hygroscopic products
  • Feeding the containers
  • Filling of the granulate
  • Bouncing of the completely pre-assembled granulate feeder with the integrated cap
  • Labelling
  • Secondary packaging if necessary
  • Procurement of suitable manufacturers and contract bottlers

Sampling

Samples of our granulate doser are available for glass or PET containers in white with red actuating disc:

  • dosing volume: 0.5 ccm per rotation
  • cup volume 10 ccm

For a sample or order, please contact your personal contact person at PACKSYS or our Customer Service department by e-mail or telephone. Sample boxes with 125 ml PET cans are available for the granulate dosage for a sample flat rate.

Individual customer wishes on request

With a correspondingly high purchase quantity, individual colouring of individual parts is possible on customer request. Different dosing volumes can also be realised (0.75 ccm, 1 ccm).
